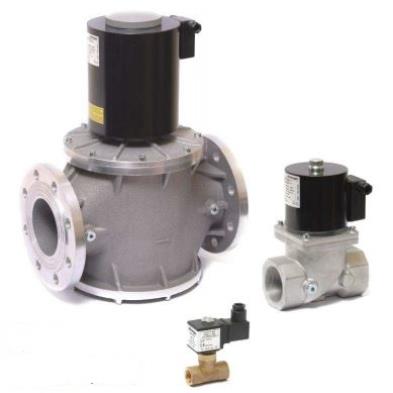

Safety solenoid valves for air and gas, normally closed, fast opening and fast closing type
The VMR type valve is a fast opening, normally closed solenoid valve. When the coil is not energized the spring works on the disc keeping the valve closed. When the coil is powered the valve opens.
Available in sizes from 1/4' to 6'
Various Pressure ratings available 20kPa, 36kPa, 50kPa and 600kPa
Voltages 240VAC, 24V AC/DC, other voltages on request.
certified to AS4629 class 1 (cert no GMK10624)
CE approved EN 161
FM approved
EAC approved
CAUTION: It is normal for the solenoid coil to reach quite high temperatures when continuously energised (55°C – 75°C). This heat has to be dissipated into the atmosphere so it is recommended that you provide adequate ventilation and shielding from any external heat sources.
