LFZ Series electric damper actuator adopts imported DC motor/brushless motor to supply power energy, And it can offer 2NM~40NM torque, it can directly works on rotary control of air system and water systems, and can realze signal control of voltage 0(2)-10V and current 0(4)-20mA also can provide mutual convertible current or voltage signal feedback , It is easy to install and can be easily fixed on the square shaft, round shaft or other shaped damper shaft, This product has advantage of long life, ow noise, and multi-functional intelligent control. The whole series of products are available with manua operation function. The protection grade of the product is IP54, and it's stable and efficient, with full overload protection function. All products are equipped with manual limit.

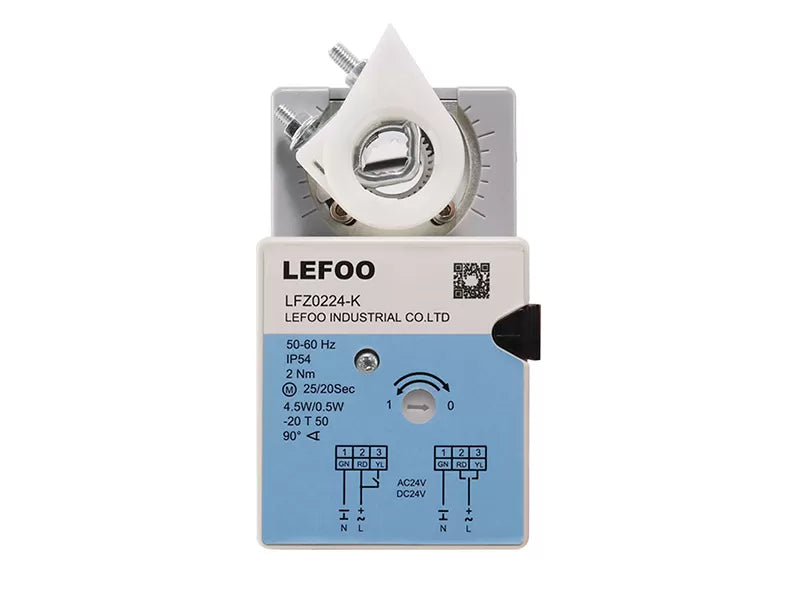

LFZ Standard Rotary Actuator
1 / of5
General
Value
Electrical parameters
Rated voltage
AC24V 50/60Hz DC24V/AC10...240V 50/60Hz
Rated voltage range
AC/DC19.2…28.8V/AC85...265V
Power consumption
Operating state 4.5w, Standby state 0.5W
Wire specification
0.5mm²
Termnal specifcation
Max2mm²
Function parameter
Torque
2Nm
4Nm
6Nm
8Nm
16Nm
24Nm
32NM
Suitable air door size
0.3m²
0.5m²
0.8m²
1.2m²
2.5m²
3.7m²
5.2m²
Rotation direction
Can be selected by DIP switch
Manual adjustment
Actuator can be manually adjusted after pressing the gear set disengagement button
Nominal/Maximum Corner
90°/95°
Noise level
46dBA(within 1 meter)
Location indication
Rotation angle provided by position indicator
Work Environment
Electrical grade
Ⅲ (safety low voltage) ll(double insulation)
Protection Grade
IP54
Working ervironment temperature
-20℃~+50℃
Storage ambient temperature
-20℃~+50℃
Temperature test
95%RH, non-condensing /EN 60730-1

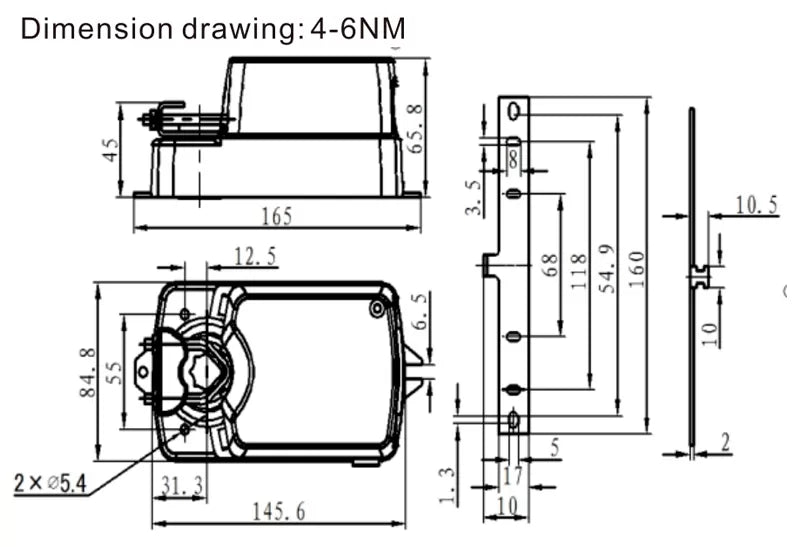

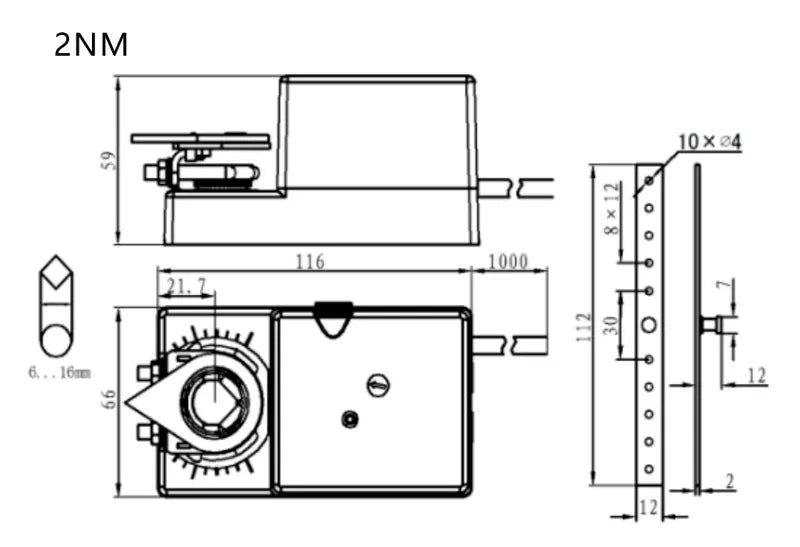

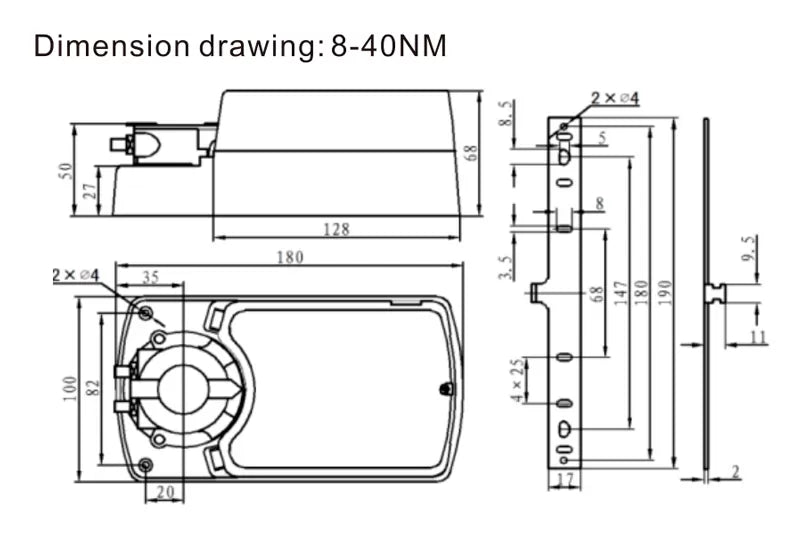

Dimension Drawing
L×W×H/mm
detail see dimensional drawing
Minimum shaft length
>50mm
Weight
<1.3 Kg
