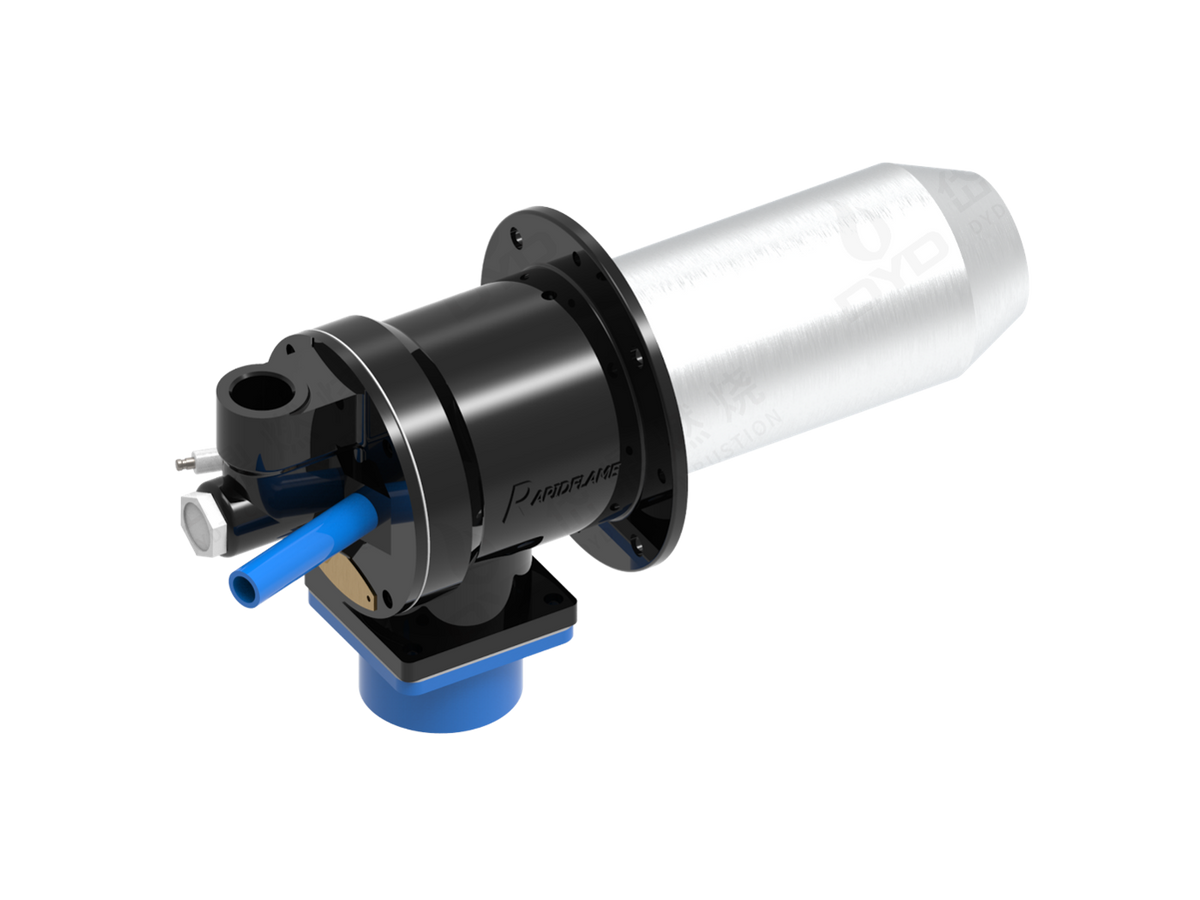

Tecflame Burner Series

Brand: Accutherm

SKU:

This product is not available for online purchase.

Contact us for availability

Description

Tecflame Gas Burner is a high-precision temperature control burner desiged by DYDTEC for medium and high temperature industrial applications. Tecflame is a nozzle-mixing burner with the characteristics of high flame velocity, ultra wide power regulation renage, sufficient and stable combustion and high heat transfer efficiency. It is widely used in ceramic shuttle kilns, furnaces (tempering, quenching, annealing, drying, preheating, thermal oxidation), and RTO.

  • Capacity Range: 105 - 5,300 kW
  • Regulation Ratio: 50:1
  • Application Maximum Combustion Chamber Temperature: 1540 degrees C.
  • Maximum Flame Velocity: 150 m/s
  • Usable With Preheating Combustion Air
  • Low CO & NOx Emisssions.
  • Direct Ignition With Spark Plug
  • Applicable for Natural Gas & LPG
Model
Max Capacity (kW)
Min Capacity (kW)
 Gas Inlet Pressure
(Max. capacity)
Air Pressure (Max. capacity) Pa
 Flame Length
(mm)
Maximum flow rate of flue gas (m/s)
Maximum combustion air temperature (°C)
Natural Gas LPG Natural Gas LPG
TecFG-010M
105
2
 400 400 1300 460 490 75
300
TecFG-010H 1900 2200 2800 360 435 150
TecFG-020M
200
4
 400 980 1020 780 970 75
TecFG-020H 2050 300 3240 750 765 150
TecFG-040M
400
8
 700 580 1200 1150 1150 75
TecFG-040H 2550 2880 3480 970 1100 150
TecFG-055M
550
12
 750 650 1000 970 990 75
TecFG-055H 1150 1750 1700 870 920 150
TecFG-075M
800
16
 500 600 680 1630 1700 75
TecFG-075H 2100 2150 2520 1350 1400 150
TecFG-125M
1300
26
 550 520 1560 2680 2680 75
150
TecFG-125H 2450 2520 3960 1900 2300 150
TecFG-185M
1980
40
 600 600 1400 3200 3200 75
TecFG-185H 2300 2300 2900 2550 2950 150
TecFG-250M
2650
50
 600 600 1200 3800 3800 75
TecFG-250H 2740 2740 3360 3200 3550 150
TecFG-375M
3960
80
 600 600 1100 3670 4750 75
TecFG-375H 2500 2500 3900 2200 2800 150
TecFG-500M
5300
105
 600 600 1850 4300 5500 75
TecFG-500H 1950 1950 4200 2200 2800 150
